Overview

A comprehensive Trauma Bone Plates and Screws System, designed for both simple and complex periarticular and shaft fractures with simple and intuitive instrumentation. Suitable for adult patients and also patients with osteopenic bone.

A single system with multiple options allowing surgeons to choose appropriate fixation with confidence. The system comes with a set of modular and compact intuitive instrumentation in order to provide surgical convenience, improve performance and reduce OR time.



Wrist

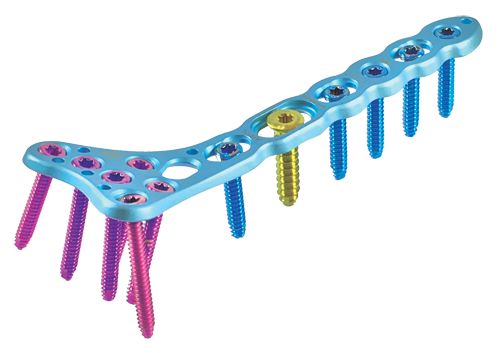

Anatomic Volar Distal Radius Locking Plate

The Anatomic Volar Distal Radius Locking Plate is a versatile plate especially designed for the treatment of intra and extra-articular fractures for the distal radius. The plate contour conforms to a broad range of patient bone anatomy and the screw trajectories target a plurarity of bone fragments with complex fracture patterns.

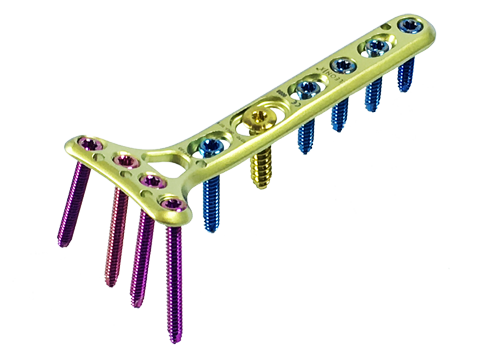

Distal Radius Locking T-Plate

The design of the Distal Radius Locking T-Plate focuses on simplicity and convenience for the treatment of simple distal radius extra-articular fracture.


Volar Rim Distal Radius Locking Plate

The unique Volar Rim Distal Radius Locking Plate is designed to meet the needs of narrower bone anatomy particularly for Asian female which generally has a smaller bone size. The thin head plate profile allows the plate to be positioned distally towards the watershed line. An additional sharp angled distal screw option is designed to engage the radial styloid bone fragment at 65°. This tab is bendable for further adjustment of plate anatomic fit.

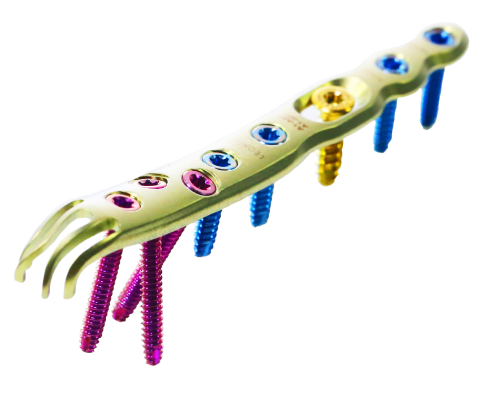

Distal Ulna Duo-Claws Locking Plate

The novelty of the Distal Ulna Duo-Claws Locking Plate lies within the function of the flexible thin claws that are capable of capturing even very small ulna styloid fragments which are not feasibly secured by screw, peg or wire. The flexible pre-contoured thin Duo-Claws form a mesh that wraps around the ulna styloid bone anatomically.


Clinical Cases

Axior_Distal_Radius.pdf

Ankle

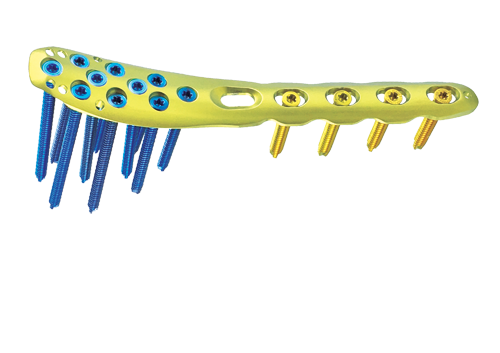

Medial Distal Tibial Locking Plate

The Medial Distal Tibial Locking Plate features absolutely low profile plate design that reduces soft tissue irritation and allows superb wound closure.

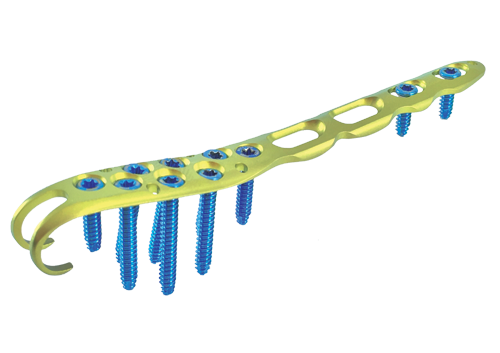

Lateral Distal Fibula Locking Hook Plate

The Lateral Distal Fibula Locking Hook Plate featuring a semi-stiffed bendable twin hook, is designed to rake in the lateral mallelous for interfragmentary compression in order to achieve absolute stability for the distal fibula fracture.

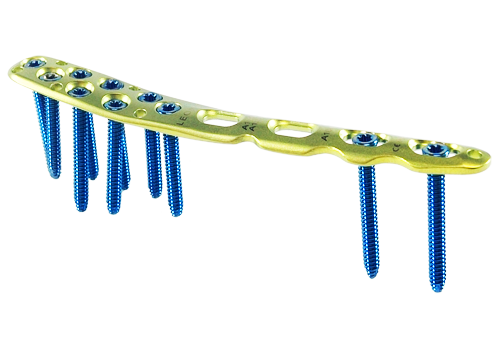

Lateral Distal Fibula Locking Plate

The Lateral Distal Fibula Locking Plate features an anatomically shaped low-profile design that reduces soft tissue irritation and allows superb wound closure and eliminate hardware prominence.

Clavicle

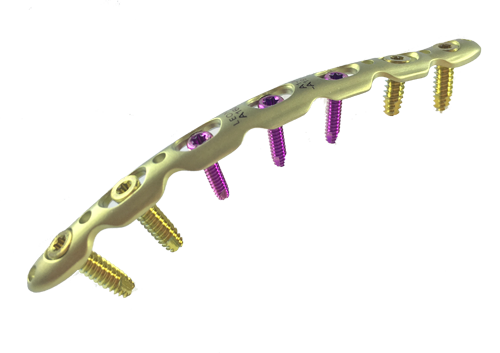

Anterior Clavicle Locking Plate

The Anterior Clavicle Locking Plate provides a solution for surgeons who desire an anterior approach for the fixation of complex oblique fracture patterns of the anterior clavicle.

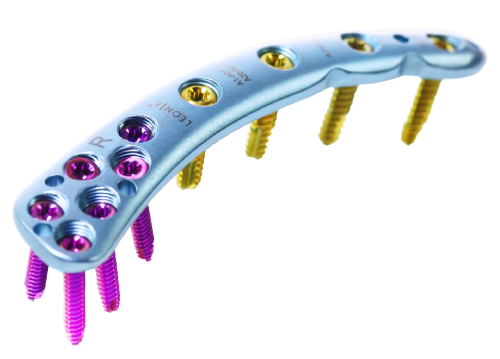

Distal Superior Clavicle Locking Plate

The Distal Superior Clavicle Locking Plate is designed to treat complex clavicle fractures by targeting distal fragments and providing secure, stable fixation for multiple fracture patterns, especially when disruption of the coracoclavicular (CC) ligaments is evident.

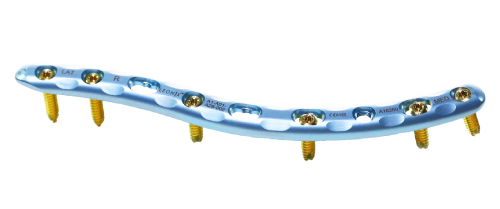

Superior Midshaft Clavicle Locking Plate

The Superior Midshaft Clavicle Locking Plate provide solution for the common midshaft clavicle fractures, malunions, and non-unions.

Universal

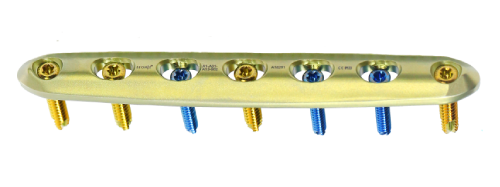

Straight Locking Plate 3.5mm

The Straight Locking Plate 3.5mm combines the conventional compression plate with locking screw technology which can provide angular stability and compression. This plate is indicated to act as conventional compression plate or can be converted to a locking plate by using appropriate locking screw insertions. This construct will protect the compression and lag screws while providing stability across extensive communition, unstable diaphysis fractures or in osteopenic bone and osteotomies.

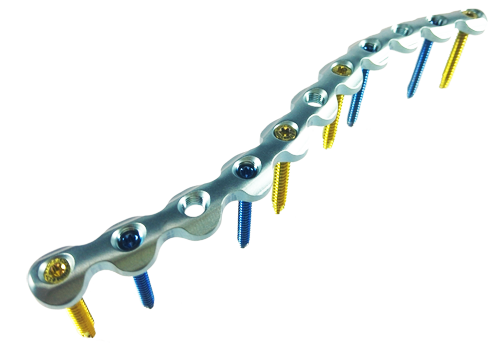

Reconstruction Locking Plate 3.5mm

The Reconstruction Locking Plate 3.5mm has unique malleable features, is a versatile plate that can be adapted intraoperatively with the use of a universal plate bender.

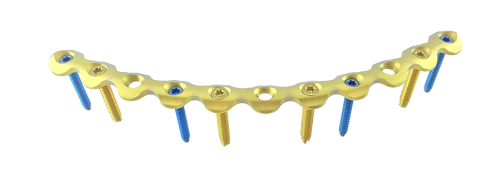

Reconstruction Low Profile Locking Plate 3.5mm

The Reconstruction Low Profile Locking Plate features absolutely low profile plate design that reduces soft tissue irritation and allows superb wound closure.

Knee

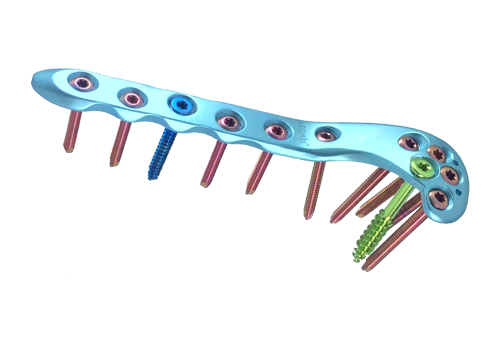

Proximal Tibial Locking Plate

The Proximal Tibial Locking Plate is designed to address the complex fractures of the tibial bone from the lateral condyle to the proximal shaft zone. The system combines locking and non-locking screws option which provides maximum flexibility and absolute stability. The system also offers various length of anatomically precontoured plates with optimum screw construct, comprehensive screw choices and a straight forward intuitive instrumentation.


Distal Femur Locking Plate

The Distal Femur Locking Plate is designed with a balanced load and stress distribution that improves fatigue behaviour. This plate addresses complex fractures of femur bone from lateral epicondyle to distal shaft. The system combines locking and non-locking screw options that provide maximum flexibility and absolute stable fixation. The system offers a unique design with various lengths of anatomically precontoured plates with optimum screw construct, comprehensive screw choices and a straightforward intuitive instrumentation.

VA Technology

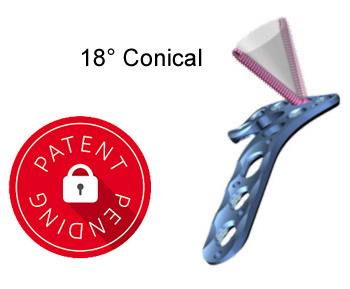

VA Locking System


VA affords an alternative to surgeons the choice of optimum screw trajectories, while at the same time providing the ability to act as fixed-angle locking. The included conical angle is now extended to 18 °

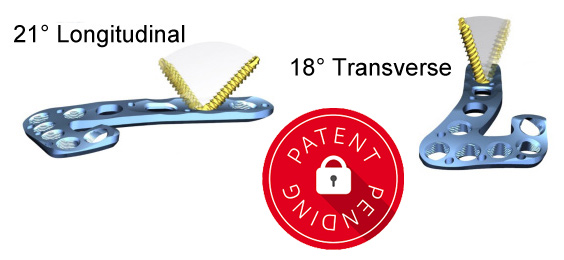

VA-DLOC Locking System

VA-DLOC allows all 4 types of locking mechanism: Dynamic compression, Locking compression, Oblique and neutral compression. The benefits of VA-DLOC is the ability to allow freedom of screw trajectories up to 21° longitudinal and 18° in the transverse direction.

Advantages of VA:


  • Redirect screw trajectory to avoid existing implants and screws as well as prostheses.
  • Adapt screws trajectories to purchase the require fracture fragments, especially on higher density bone of osteoporotic patients.


VA Elbow

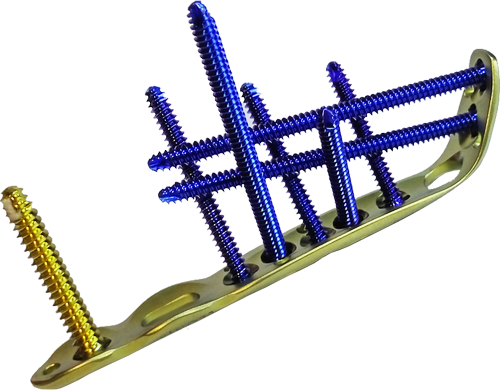

VA Proximal Olecranon Locking Plate

VA Proximal Olecranon Locking Plate is designed with improved plate profile and anatomical plate contours to reduce soft tissue irritation while at the same time providing flexibility in screws trajectories for optimum fixation stability. The VA Proximal Olecranon Locking Plate is indicated for fractures, osteotomies, malunions and non-unions of the proximal olecranon.

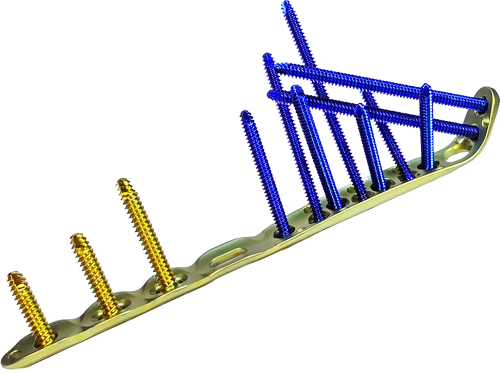

VA Olecranon Locking Plate

VA Olecranon Locking Plate is designed with longer length to stabilize the coronoid and neutralize the forces of the triceps muscle. The VA Olecranon Locking Plate is indicated for fractures, osteotomies, malunions and non-unions of the olecranon.

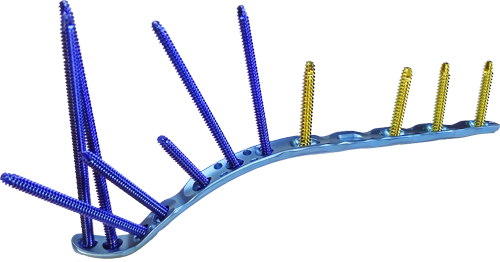

VA Medial Distal Humerus Locking Plate

The VA Medial Distal Humerus Locking Plates is design with improved anatomical profile to reduce hardware prominence and soft tissue irritation while providing flexible but stabile fixation of the medial distal humerus fractures. The VA Medial Distal Humerus Locking Plate offer multiple screw configurations and trajectories for the medial columns, and the articular block.

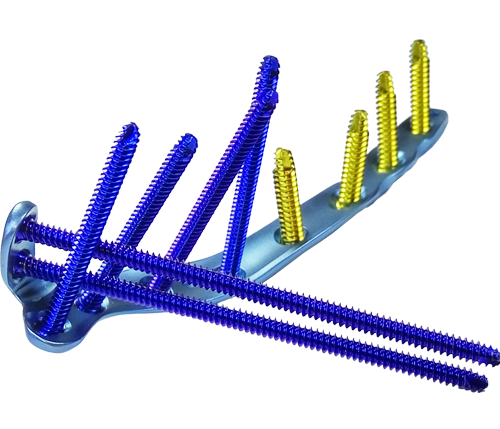

VA Posterolateral Distal Humerus Locking Plate

VA Posterolateral Distal Humerus Locking Plate features the lateral support for placement of long screws to target the trochlea from lateral side. The VA Posterolateral Distal Humerus Locking Plate is indicated for intra-articular fractures, comminuted supracondylar fractures, osteotomies, malunions and non-unions of the distal humerus.


VA Wrist

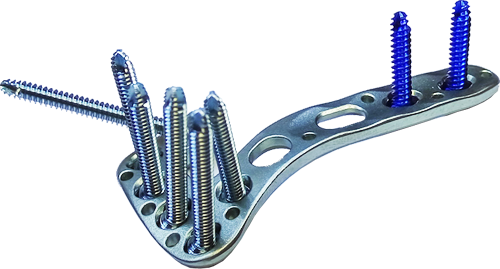

VA Distal Radius Locking Plate

The VA Distal Radius Locking Plate are anatomically pre-countered to provide adaptable fixation of intra-articular and extra-articular distal radius fracture for maximum support of radial styloid, lunate facet and DRUJ.
